High Speed Paper sheeter cutting machine GM1450
fast speed roll to sheet cutting
max width 1450mm, 1750mm 1950mm
-
High Speed Paper Sheeter Cutting Machine GM1450
Roll to sheet Paper Sheeter GM1450
Servo Precision high speed Sheet cutting Machine GM1450 apply the advanced technique of Germany and England, the machine computer control system apply Servo motor and AC transducer which are both international of Top brand ,the conveyer belt apply NITTA from Japan ,The pneumatic vibrator apply FINDEVA form Switzerland, the electrical system adopts Schneider& Omron. It leads to the speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision, the controller of soft-touch computer screen is simple and convenient by operation, the anti-curve rack assure the paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry.
Standard Configuration
1高精度单刀切纸机 High-precision single knife cutting machine
2纸张菱角调正系统 Prismatic adjustment system for paper
3静电消除设备 Equipment of Electro static elimination

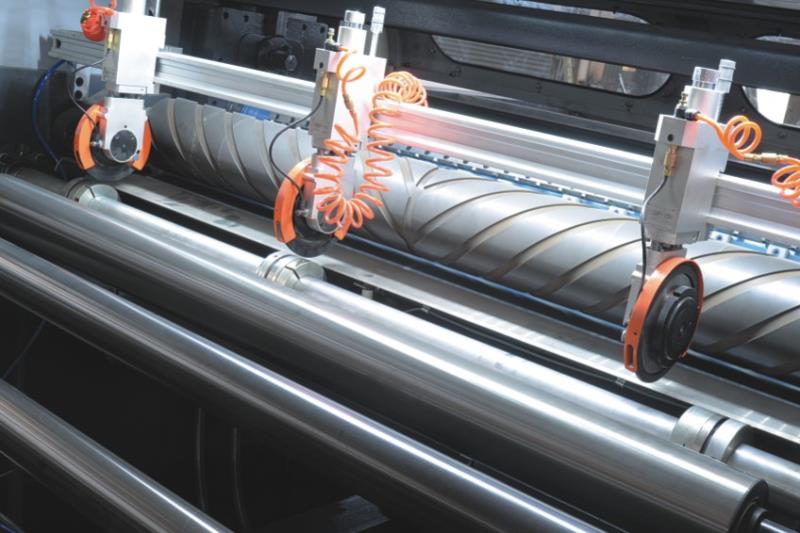

4对剖及纸边收集系统 Middle slitting and waste collection system
5自动计数标签插曲设备Automatic counting and label inserting equipment
6卷筒纸运输设备(含轨道车两条) Paper transporting equipment
7自动齐纸集纸设备 Automatic paper trimming and collecting machine
8驱动马达系统 Driving motor system
9电器操控系统 Electrical controlling system
10随机附属品 Accessory by machine
11双臂油压无轴式纸架 Double arm oil pressure shaftless paper rack
12自动导达及张力系统Automatic directing and paper tension controller
13自动吸尘器设备 Equipment of automatic vacuum
14操作系统:人机界面液晶屏幕 Operation system: LCD panel by operator
15主传动系统:AC伺服马达 Main drive system: AC servo motor
技术参数 Main Technical Parameter
型号
Model
GM1450
型号
Model
GM1450
切纸型式
Model of cutting Paper
上刀回切,下刀固定
The up knife cut reciprocally and down knife is fixed
最高切断米速
Max cutting line speed
350cuts/min
纸张适用范围
Thickness of cutting paper
50-550g
切断长度
Cutting length range
430--1450mm
切断精度
Cutting precision
切断长度在1000mm以下:±0.3mm
The cutting length 1000mm is ±0.3mm
Paper piling height
1600mm
最高切断速度
Max cutting speed
350cuts/min
最大卷筒纸直径
Max. scroll diameter
1800mm Max
机台总量
Gross Weight
11000Kg/ 13000Kg/ 15000kg
最大卷筒纸张幅
Max. paper cutting width
1450mm
电源
Power Supply
380V/ 220V ± 10%
50 Hz, 60Hz
剖纸幅数
(The format of slitting)
2 幅 (2 sheets)
气压源要求
air compressor
0.8 Mpa
-
